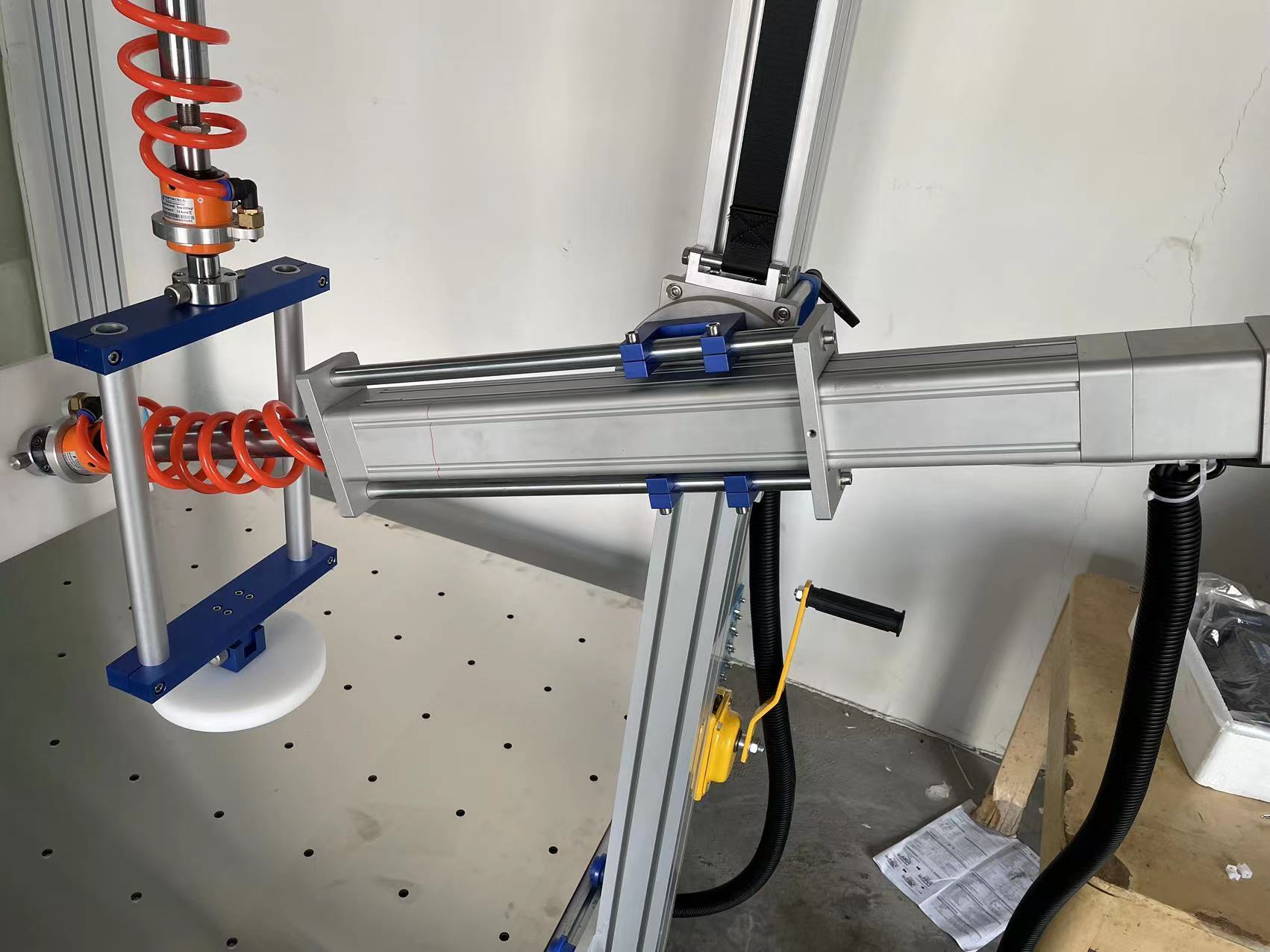

Chair Seat and Backrest Combined Fatigue Testing Machine

The backrest combined tester is suitable for testing the service life of chair reclining mechanisms as well as the durability of chair backrests and seats. As a multi-functional testing device, this equipment can be set to output force or perform repeated linear movements at specified positions.

Compliant with Standard Bifmax5.1-2017; GB10357.3-2013; EN1728-2012

The chair seat and back combined testing machine is applicable to seating products such as office chairs, chairs and stools. As a multi-functional testing device for office chairs, it can simulate the repeated actions of a human body sitting on the chair seat and leaning backward, so as to test the performance of chair seats and chair backs.

• Equipped with one multi-channel control system, supporting simultaneous operation of 2 independent test channels
• Contains horizontal test axis (Stroke: 300mm, Max load: 100kg) and vertical loading axis (Stroke: 300mm, Max load: 200kg)
• Every loading axis fitted with force sensor for load measurement
• High measuring accuracy: static force ±0.5%, dynamic force 0~2%
• Test speed, cycle times, holding time and cycle time fully programmable
• Adopts PLC automatic control system with 7-inch touch screen to monitor all force offset data
• Built-in power-off memory and breakpoint detection stop function
• Auto stop & alarm once reaching preset test cycles
• Integrated fault self-diagnosis system, easy for fault inspection and troubleshooting

How to install and use the product?
The product is shipped with operating instructions and an English version video. Alternatively, we will send you an operation video with English narration to guide you through installation and usage. If you require face-to-face training, please notify us in advance.

How about the packing for machine, is it safely protected during transportation?
Our machines are packed in standard export wooden boxes to ensure they won't be damaged during transportation. We have successfully delivered many testing machines internationally by sea and air without any damage incidents.
